For those that have access to the back of their bar face, bar mount brackets are a great option for both a classy look and an added level of convenience.
Bar mount brackets are a great option for those that can’t (or don’t want) to drill holes into their floors, and keep it clear of mounts that can stub toes. They also make cleaning your floor easier because you can sweep or mop under your foot rail without impediments.
This bar mount bracket is made from brass with a polished finish, and will precisely match your Polished Brass 1.5-inch outside diameter bar rail tubing.
The more narrow diameter of this 1.5-inch rail component makes it versatile to use as a handrail bracket as well as with foot rails.
You can create a custom look with bar mounted brackets because they allow you to choose the height of your bar rail. This is the perfect solution for those wanting to mount their bar rail higher than the standard 6”. Be sure to carefully measure where each bracket will be placed before drilling into your bar. For proper support, bar brackets should be placed at each end of the tubing, plus one for every 4-foot increment.

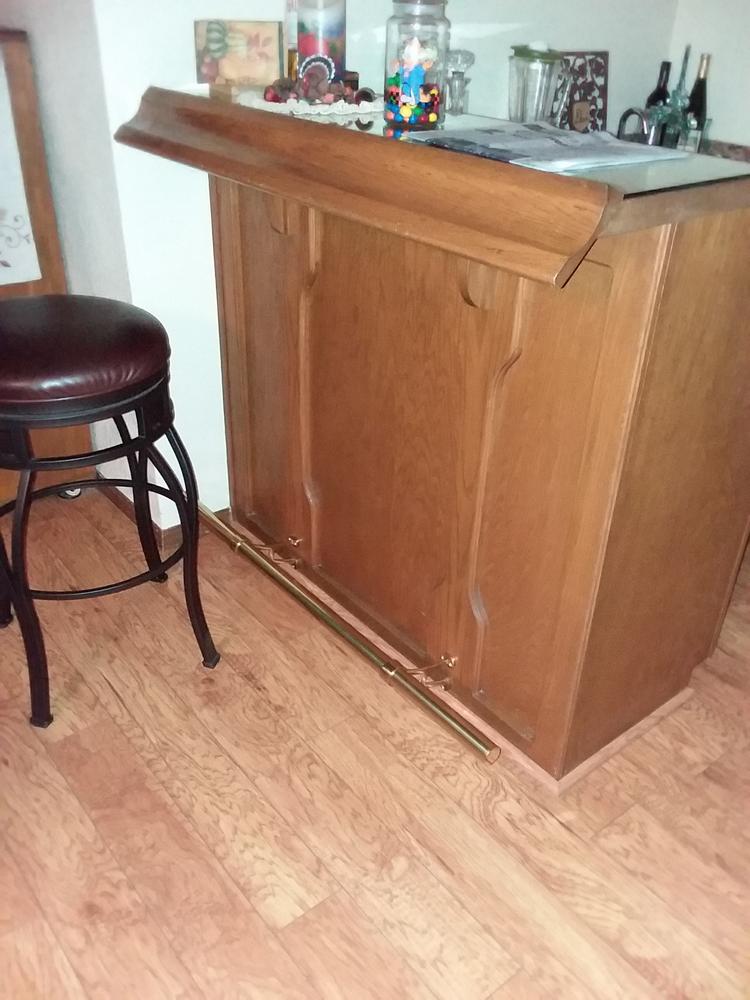

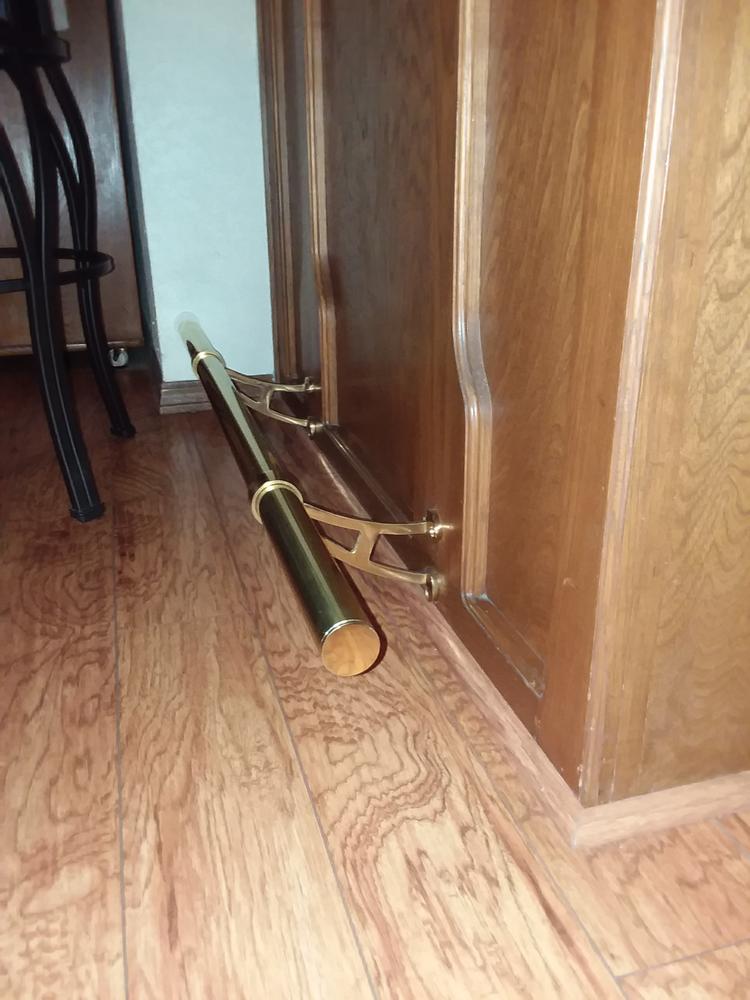

These brackets mount directly to the face of the bar via three mounting screws and a threaded bolt that mounts from behind the bar to create a modern look where your metal bar rail tubing looks as if it is floating next to the bar. The threaded bolt is what provides the added weight support to secure your foot rail in place.
For help deciding which bracket will work best for your bar project, check out our bar foot rail brackets guide for more information on each of the options.
Installation instructions:
Bar mount brackets include a nut-and-bolt assembly to properly support the weight. A solid backing at least 3/4” deep is required to ensure adequate support.
- Measure & mark holes for mounting screws and for the threaded bolt.
- Drill hole in bar diewall for the threaded rod.
- Attach bracket from behind bar face using rod and secure with bolt and washer.
- Attach brackets to the face of the bar with the 3 mounting screws.
- Secure tubing to bracket by fastening set screws through hole in the bottom of bracket.
For more detailed instructions on how to install bar rail read our guide to planning & installing.
Care & Maintenance:
Care and maintenance of bar foot rail varies by finish. Given the nature of the product, typical wear and tear may be noticed with your bar rail over time, such as scuffs, scratches and dirt. Our guide to cleaning & maintenance on how to properly prep, clean & maintain all bar rail finishes.
-
- Made of brass with polished finish
- For use with 1.5" Outside Diameter bar rail tubing
- Attaches to the face of the bar from the rear
- Brackets should be used at both ends of rail tubing, plus one at every 4' increment
- Mounting screws & hanger bolt for back of bar included
- Suitable for indoor use only (Clear coat protection available by request)
-
- Bracket Width: 7.23”
- Bracket Height: 6.11”
- Opening Diameter: 1.50” (for 1.5” OD tubing)
- Wall to Center of Tubing (Horizontal Center Point): 6.38”
- Floor to Center of Tubing (Vertical Center Point): 5.24”
-
- (3) #10 1-1/2" Mounting Screws
- (1) #8 3/4" Self-Drilling Set Screw
- (1) 2 ¾" Hanger Bolt
- (1) Hex Nut 5/16” - 18
- (1) USS Flat Washer - 5/16”
- null
- null
- Download Spec Sheet
